Metallic and Treated Wood Doors
Great quality of metal and treated wood doors, with an attractive, functional design and manufactured by Vedamisto in Aveiras.
VM Garden Gate Doors
100x50x4mm flat panel mesh made from hot dip galvanized wire with a minimum zinc coating of 50 / g / m2.
Posts made from hot-dip galvanized sheet, with an average zinc coating of 275 g / m2.
Plasticized panels and posts by electrostatic application of polyester (min. 120 microns) with subsequent thermosetting.
Locinox and Teicocil accessories.
Colors
Outras cores disponíveis por encomenda
Door Measures
| Height (mm) | Useful Aperture (mm) |
|---|---|
| 1000 | 1000 |
| 1500 | 1000 |
| 2000 | 1000 |

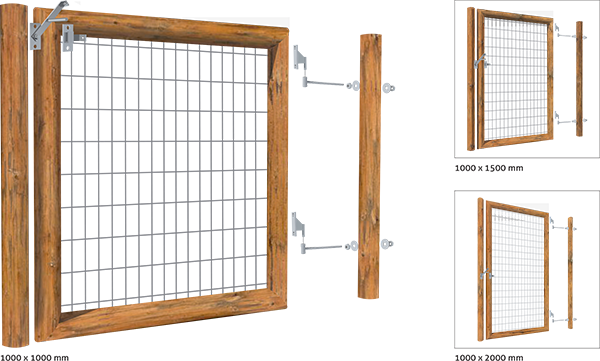

Portas VM Wood Gate
Turned wood frame Ø 8 cm. Treated in class IV autoclave.
Wire panel covering Ø 4mm, 100 x 50 mm galvanized steel mesh.
Hot dip galvanized locking system.
Hot dip galvanized steel hinge system.
Acessórios
1 – Aldrabagate Clasp
2 – Hot dip galvanized steel hinge
Door Measures
| Lenght (mm) | Height (mm) |
|---|---|
| 1000 | 1000 |
| 1000 | 1500 |
| 1000 | 2000 |
Portas VM Perfil 3D
3D profiled panel; 200 x 50 mm mesh; Horizontal wires 1 x Ø 5mm; Vertical wires 1 x Ø 5mm.
Panels made from hot dip galvanized wire with a minimum zinc coating of 50 / g / m2.
Posts made from hot-dip galvanized sheet, with an average zinc coating of 275 g / m2.
Plasticized panels and posts by electrostatic application of polyester (min. 120 microns) with subsequent thermosetting.
Locinox Accessories.
Colors
Other colors available on request
Door Measures
| Height (mm) |
Easy opening (mm) |
Mesh (mm) |
Wires Horiz (mm) |
Wires Vert. (mm) |
|---|---|---|---|---|
| 830 | 985 | 200X50 | 1 x Ø5 | 1 x Ø5 |
| 1030 | 985 | |||
| 840 | 2000 | |||
| 1230 | 985 | |||
| 1530 | 985 | |||
| 1730 | 985 | |||
| 1930 | 985 | |||
| 2030 | 985 | |||
| 2430 | 985 |
Robust VM Doors
Profiles made from hot-dip galvanized sheet with an average zinc interior and exterior cover of 275 g / m2.
Plasticized by electrostatic application of polyester (min. 120 microns).
Locinox Accessories.
Colors
Other colors available on request
Door measures
| Height (mm) |
Lenght (mm) |
|---|---|
| 1000 | 1000 |
| 1250 | 1000 |
| 1500 | 1000 |
| 1750 | 1000 |
| 2000 | 1000 |
| 2250 | 1000 |
| 2500 | 1000 |
Doors VM DW
Panels made from hot dip galvanized wire with a minimum zinc coating of 50 / g / m2.
Posts made from hot-dip galvanized sheet, with an average zinc coating of 275 g / m2.
Plasticized panels and posts by electrostatic application of polyester (min. 120 microns) with subsequent thermosetting.
Locinox Accessories.
Colors
Other colors available on request
Door measures
| Height (mm) |
lenght (mm) |
|---|---|
| 830 | 985 |
| 1030 | 985 |
| 1230 | 985 |
| 1430 | 985 |
| 1630 | 985 |
| 1830 | 985 |
| 2030 | 985 |
| 2230 | 985 |
| 2430 | 985 |
